Solar Navigation Light

Solar Navigation Light

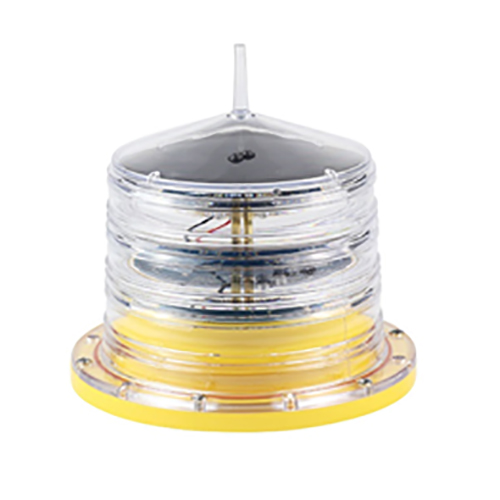

Solar Navigation Light-1

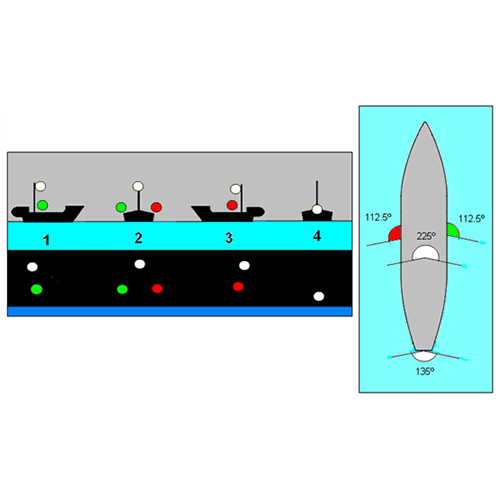

Solar Navigation Light-2

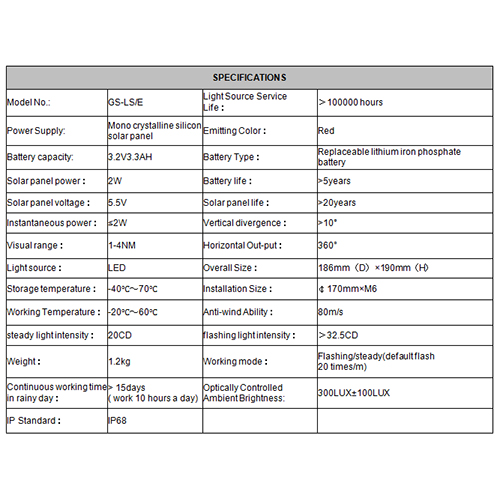

Solar Navigation Light-3


Solar Navigation Lights are used by Ships & Boats to navigate safely at sea. Red, Green, White, and Yellow are the 03 colours in which Solar Navigation Lights come. They are designed with high quality material to withstand rough weather. Solar panel and Battery is built-in and controlled by hi-tech PCBA chips.


1. Continuous working time in rainy day can reach more than 15 days (10 hours a day).
2. Photocell can switch ON/OFF the light in rainy days or at night automatically.
3. Standardization of optical design, high photoelectric conversion efficiency.
4. Adopts high efficient solar chip, photoelectric conversion efficiency is over 19%.
5. The integration of the waterproof design, it can work in soaking in sea water, High protection grade IP68.
6. Adopts special customized LED chip, transfer efficiency and service life is higher than normal LED.
7. Circuit adopts advanced charging and discharging management system, prolong battery’s life effectively.
8. The lamp extend state switch, it can adjust steady or flashing light working mode base on requirement.
9. Provides strong corrosion resistance, lightning resistance, UV resistance, impact resistance.
10. The base adopts marine-grade dedicated plastic material, it can apply to seaways, riverway, chemical plant and airport that have hostile and strong corrosive environment.
11. With anti-bird device.
12. No radio frequency (rf), no electromagnetic interference.
13. Steady working, low cost.


1. Please read the instruction carefully and then use the device correctly.
2. Solar powered marine lantern must be installed in a sunny place to keep it working continuously.
3. Please install this light on the Installation plane that perpendicular to light axis, installation plane should has mechanical strength.
4. If the device fails to work at the first using time, please place the device under sunlight to recharge power 12hours, it will work.
5. Please turn off the device and put it in a dry place, to ensure the life of the battery. Please put it in a sunlight for 5day(s) to recharge power each 3 months if it needs to be stored for a long time.
6. If there any other problem please contact us.

Packing Details

HS Code –


Technical documents download link
